The Role of Electrical Steel (Silicon Steel) in Modern Electrical Applications

Electrical steel, also known as silicon steel, is a crucial material in the manufacturing of electrical components and equipment. Known for its magnetic properties and high electrical resistivity, electrical steel is vital in the efficiency and performance of electrical transformers, motors, and generators. This specialized steel is designed to minimize energy loss during the conversion and transmission of electrical power, making it a key material in energy-efficient electrical systems.

What is Electrical Steel (Silicon Steel)?

Electrical steel is a type of steel alloy that contains silicon, which enhances its magnetic properties and electrical resistivity. These characteristics allow electrical steel to reduce energy loss during the transmission of electricity, making it an ideal material for manufacturing transformers, generators, and electric motors. The addition of silicon to the steel improves its permeability, allowing it to conduct magnetic fields more efficiently while minimizing hysteresis and eddy current losses. Electrical steel is commonly produced in two types: grain-oriented electrical steel (GOES) and non-grain-oriented electrical steel (NGOES), each with specific applications in the electrical industry.

Key Properties of Electrical Steel:

1. High Magnetic Permeability:

Electrical steel exhibits high magnetic permeability, which means it can efficiently carry magnetic fields. This property is essential in reducing energy loss during the operation of transformers and electric motors.

2. Low Core Loss:

One of the most important properties of electrical steel is its low core loss. This refers to the amount of energy lost as heat when the steel is subjected to alternating magnetic fields. Electrical steel is specifically designed to minimize these losses, improving the overall energy efficiency of electrical systems.

3. High Electrical Resistivity:

Silicon increases the electrical resistivity of the steel, which helps reduce the formation of eddy currents that can cause energy loss in the form of heat. High resistivity ensures that electrical steel can operate efficiently in transformers and motors without significant energy waste.

4. Magnetic Saturation:

Electrical steel has a high magnetic saturation point, meaning it can carry a high level of magnetic flux without saturating. This property is critical for applications that require strong magnetic fields, such as large transformers and industrial motors.

5. Thin Lamination for Reduced Losses:

Electrical steel is often produced in thin sheets, or laminations, to further reduce energy losses. These laminations are used in the cores of transformers and motors to improve energy efficiency and performance.

Benefits of Electrical Steel (Silicon Steel):

1. Energy Efficiency:

Electrical steel is engineered to minimize energy losses during electrical power generation, transmission, and conversion. Its high electrical resistivity and low core loss properties make it essential for energy-efficient transformers, motors, and generators.

2. Enhanced Performance of Electrical Devices:

The magnetic properties of electrical steel enable transformers and electric motors to operate more efficiently and with greater performance. By reducing energy loss and improving magnetic flux, electrical steel enhances the functionality of key electrical devices.

3. Reduced Heat Generation:

By minimizing eddy currents and hysteresis losses, electrical steel reduces the amount of heat generated in electrical components. This helps prevent overheating, prolongs the life of equipment, and ensures safer operation in high-voltage applications.

4. Sustainability and Cost Savings:

The use of electrical steel in energy-efficient devices helps reduce overall energy consumption, lowering operational costs and contributing to sustainability efforts. Electrical steel also extends the lifespan of transformers and motors, reducing the need for frequent replacements and repairs.

5. Versatility in Electrical Applications:

Electrical steel is used in a wide range of electrical devices, from small household appliances to large industrial transformers. Its versatility makes it a critical material for both consumer and industrial electrical applications.

Types of Electrical Steel:

1.Grain-Oriented Electrical Steel (GOES):

GOES is specifically engineered for use in transformers. It has high magnetic permeability in one direction, making it ideal for reducing energy losses in large electrical transformers. GOES is primarily used in power generation and electrical transmission industries.

2. Non-Grain-Oriented Electrical Steel (NGOES):

NGOES is used in applications where magnetic fields are present in multiple directions, such as electric motors and generators. It is commonly found in industrial motors, appliances, and automotive components. NGOES offers good magnetic properties and is widely used in the manufacturing of rotating machinery.

Applications of Electrical Steel (Silicon Steel):

1. Transformers:

Electrical steel is essential for the production of transformer cores. Its ability to carry magnetic fields with minimal energy loss makes it ideal for both power and distribution transformers. The use of GOES in transformer cores helps reduce energy losses during the transmission of electricity over long distances.

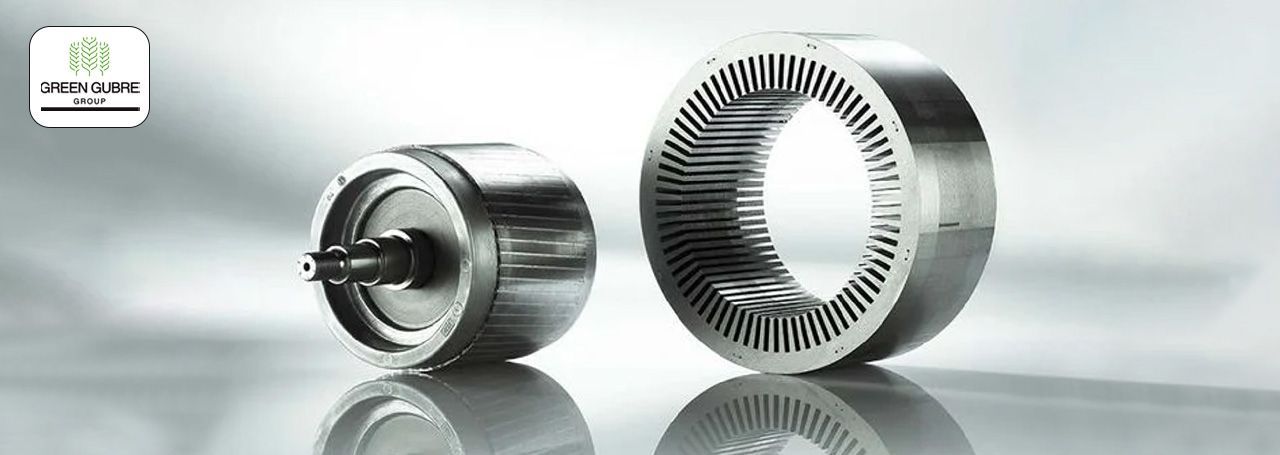

2. Electric Motors:

Electric motors rely on electrical steel to convert electrical energy into mechanical motion. NGOES is commonly used in the production of motor cores, where its magnetic properties allow for efficient energy conversion. Electrical steel is also used in electric vehicle (EV) motors, where energy efficiency is crucial for maximizing range and performance.

3. Generators:

Electrical steel plays a key role in the construction of generator cores, where its high magnetic permeability and low core loss help generate electricity efficiently. Generators used in power plants, wind turbines, and industrial applications rely on electrical steel to minimize energy loss and enhance output.

4. Appliances and Electronics:

Electrical steel is used in the production of household appliances, such as refrigerators, air conditioners, and washing machines. Its energy-efficient properties help reduce electricity consumption in these devices, making them more environmentally friendly.

5. Automotive Industry:

In the automotive industry, electrical steel is used in electric and hybrid vehicle motors. Its ability to reduce energy losses and improve performance makes it essential for developing energy-efficient automotive technologies. NGOES is commonly used in the production of electric motor cores for automotive applications.

Global Demand for Electrical Steel:

The demand for electrical steel is increasing globally as industries focus on energy efficiency and sustainability. The need for high-quality electrical steel is growing with the rise of renewable energy sources, electric vehicles, and energy-efficient appliances. Governments and industries worldwide are investing in energy-efficient technologies, driving the adoption of electrical steel in transformers, motors, and generators.

Conclusion:

Electrical steel (silicon steel) is a vital material for modern electrical applications, offering enhanced energy efficiency, improved performance, and reduced heat generation. Its magnetic properties make it ideal for use in transformers, motors, and generators, where minimizing energy losses is critical. As industries focus on sustainability and reducing energy consumption, the role of electrical steel in creating energy-efficient devices will continue to expand. Discover our range of high-quality electrical steel products designed for a variety of industrial and consumer applications by visiting our dedicated product page.
